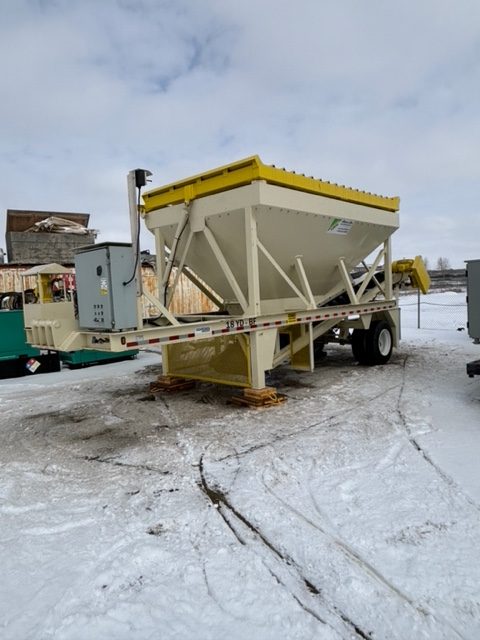

2011 Nor Tech 36SF 36″ Feed Belt
- 36” conveyor belt, 3-ply 3/16” x 1/16” covers, (hot) vulcanized splice
- 18 cubic yard hopper capacity, with nominal 9’ x 16’ opening
- Hyd. tilting grizzly with self-relieving bars spaced at 6 1/2 ‘’
- Adjustable strike-off gate.
- Pickup throat
- Removable clean out hatch at rear of hopper
- Single axle, with air brakes and lights
- 20 h/p Teco Max-PE “Inverter duty” motor, 460 V
- Dodge TXT 625 shaft mount reducer
- Dodge SCM pillow block bearings
- Precision CEMA-C 5” troughing & rubber disc return idlers
- Precision return idler guards.
- Precision 16” HD head pulley, 2 15/16” shaft and 3/8” lagging
- Precision 12” HD self-cleaning tail pulley, 2 7/16” shaft
- Test ran, belt trained, ready to work
Optional equipment included:
- Wireless remote to raise/lower the grizzly
- Parts assemblies for raising & lowering the hydraulic grizzly consisting of two (2) lift cylinders and hydraulic piping
- Electrical package: includes enclosure, switch gear with start/stop buttons, VFD. VFD controls and buttons mounted in face of switch gear panel
