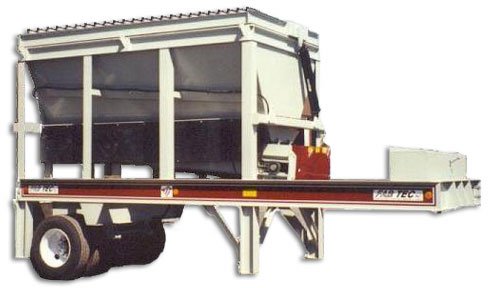

Portable 36″x17′ Belt Feeder
12 OR 15 C.Y. Hopper:
- 3/8” Plate
- Adjustable Wt. feed gate
- 14 ft wide separating grizzly
Hydraulic Dump Grizzly:
- Grizzly bars 3/4″x6″ FB and 1 1⁄2″ round.
- 10 HP Vickers V20 pump with spool valve
- 4″ Bore x 36″ stroke cylinders
- Hydraulic tank with filter protection
36″x17 ft Belt Feeder:
- 20 HP Teco Motor
- Falk shaft mount reducer
- Dodge SCM bearings,
- 3 ply belt with 1/4″ cover.
- 16” vulcanized lagged head pulley self cleaning wing tail pulley.
- 12″ Centers on CEMA C sealed carrier rollers
Main Frame:
- W14 x 30 wide flange main beam
- 22,500 lb. axle w/ 11.00 x 22.5 dual tires on 10 hole hub piloted wheels
- Hutch leaf spring suspension
- Air brakes, light and mud flaps
Standard Duty Options:
- Solid state variable speed controller
- Feeder without grizzly
- Fold down side panels
Optional Heavy Duty Feeder Includes:
- Fold down side panels
- Heavy duty 16 ft grizzly and 16 ft hopper
- W16 Wide flange main beam
