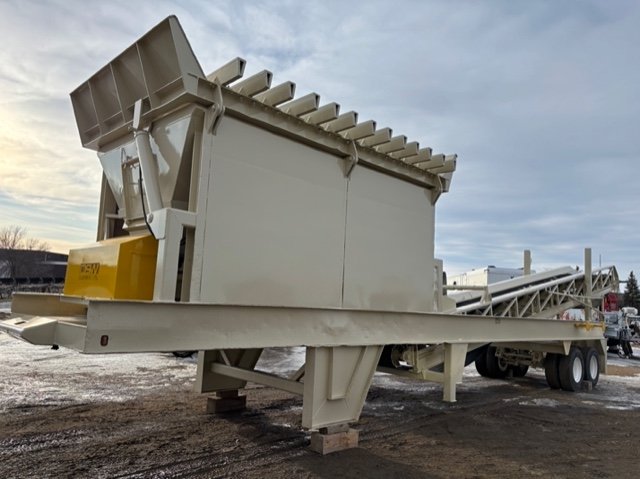

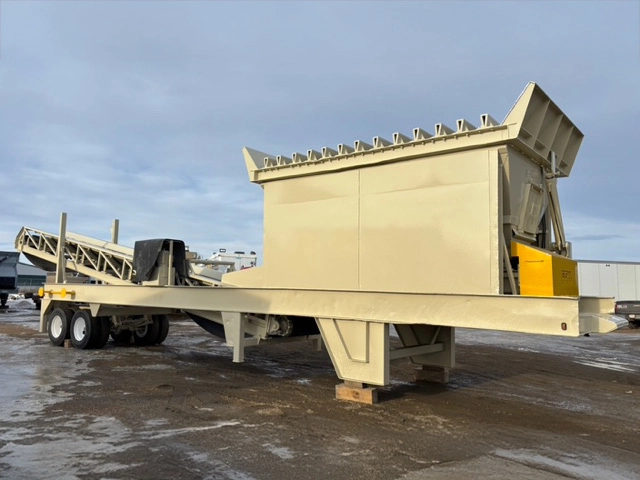

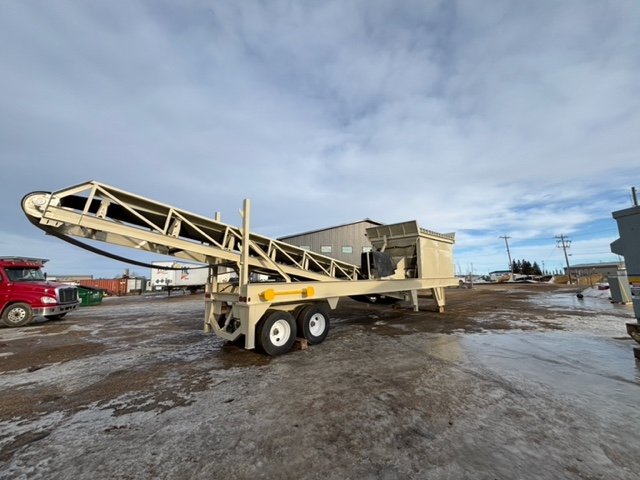

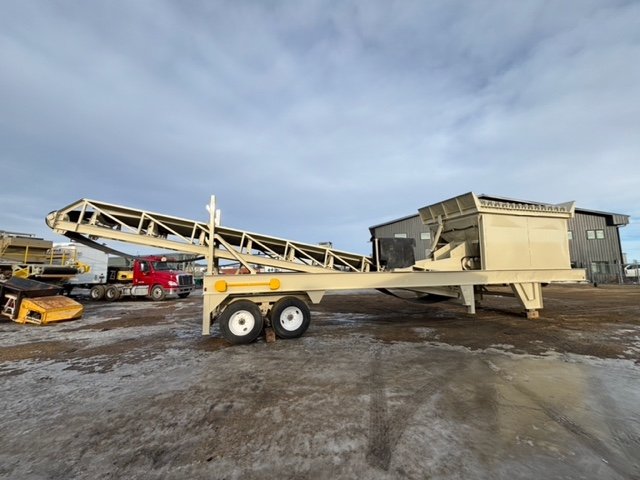

2012 Nor-tech 3642 Portable Belt Feeder – On Rent

Chassis:

• Main frame rails of 18” 55 lb. wide flange
• Tandem axle Hutch spring suspension with air brakes, travel lights, 10:00R 22.5 tires, steel wheels
• 2 blocking points under hopper
• 2 blocking legs at rear of chassis
• Pickup throat
• Mud flaps

 Inclined discharge conveyor rated at 700 TPH:

• 42″ wide belt with 20 HP Teco Max-PE 460 V motor
• 3 ply 330 PIW belting with 3/16”x1/16” covers
• Vulcanized belt splice
• Rubber lagged 16” head pulley, 2 15/16” shaft
• 14” self-cleaning tail pulley, 2 15/16” shaft
• CEMA-C 5” troughing idlers spaced at 48”
• Three (3) impact sets in hopper area
• Rubber disc return rolls
• TXT-525 Dodge shaft-mounted reducer
• Belt drive c/w guard
• Manual adjustable discharge height
• 40 feet long
• Rock roll-back swing gate
• Receiving hopper

Feeder module:

• 15 hp Teco Max-E1 460 V motor with Dodge Quantis #148 drive (131.49 ratio) reducer
• 36″ wide 600 PIW belt with 3/8” top cover X 13’ approximate length
• 16” rubber lagged head pulley with 3 7/16” shaft
• 14” self-cleaning tail pulley with 2 15/16” shaft
• Vulcanized belt splice
• Rubber disc 5” CEMA-C return idler (1)
• Six (6″) inch CEMA-C live rubber impact rolls c/w 1 15/16” pillow block bearings spaced at 9″ centers
• Removable cartridge style design
