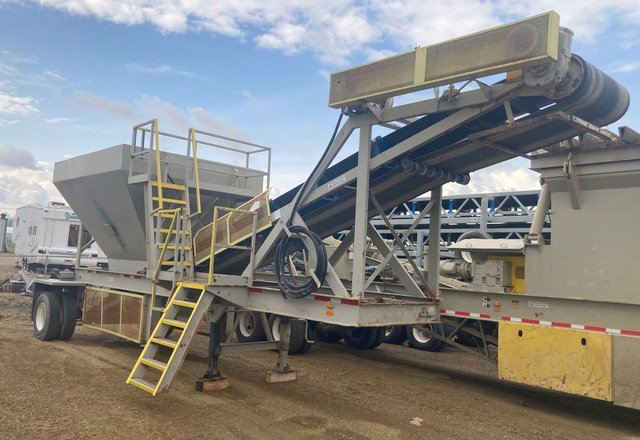

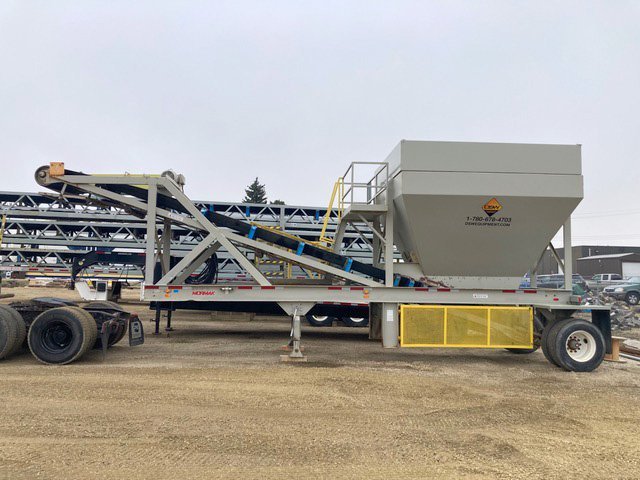

2008 Hikon 39 Yd Surge Bin Feeder

BASIC CHASSIS

• single axle
• 11.00r22.5 radial dual tires
• budd wheels
• air brakes
• travel lights
• mud flaps
• wide flange main rails
• complete unit blasted and painted with hikon gray industrial
• power cord hanger
• crank up dolley legs

DISCHARGE CONVEYOR

• 34′ long
• 42″ wide 3/16 x 1/16 – 3 ply goodyear pylon belting
• vulcanized belt splice
• 12″ luff trough idler spacing under hopper
• 30″ luff trough idler spacing

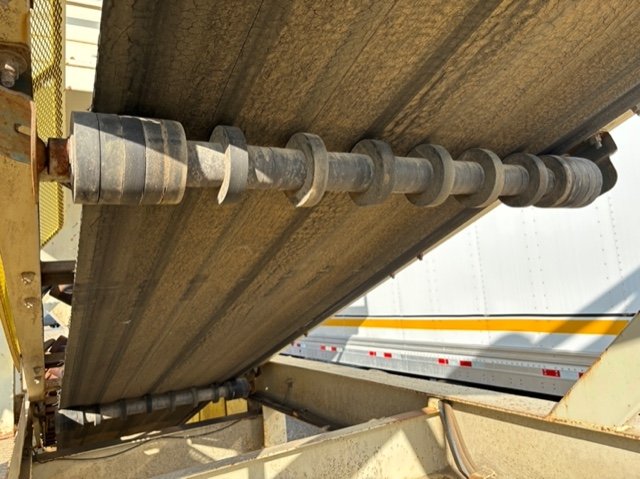

• 5″ luff rubber disced return rolls spaced at a maximum of 10″
• luff 35 degree trough sets c/w 5″ cema c rolls
• 16″ rubber lagged crowned head pulley c/w 2-15/16″ shaft
• 14”-winged self cleaning tail pulley c/w 2-7/16″ shaft
• dodge #6 shaft mounted reducer
• belt drive c/w drive guard
• 40 hp tefc drive motor
• v-plow scraper
• head pulley scraper
• screw type belt take up
• backstop
