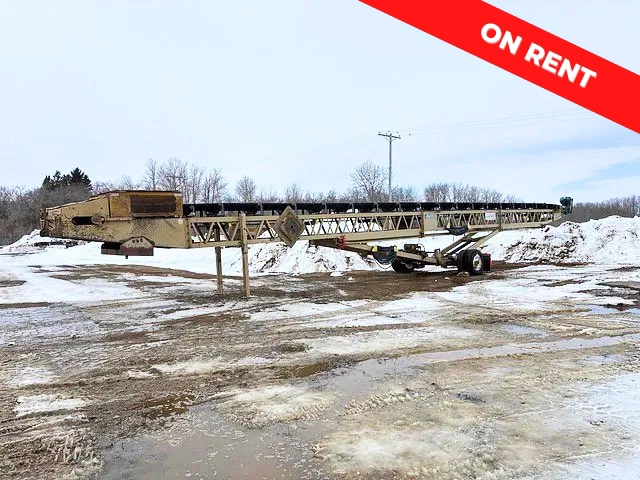

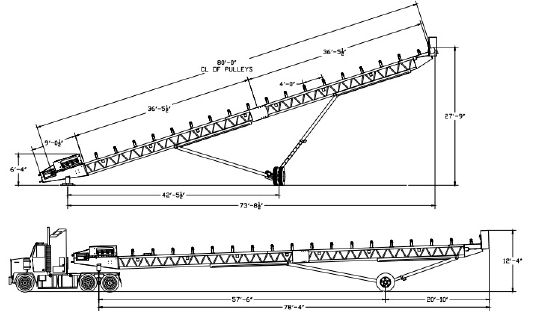

2013 TCI 36×80 Radial Stacker
Note: Description below as built when new. Some changes may have been made
One only used TCI 36” x 80’ Series II portable radial stacker, complete with the following specifications:
- Capacity – 500 TPH
- Belt Speed – 350 FPM
- Drive Arrangement – Head drive with a manual take-up
- Main Frame – 30” deep truss design
- Chord Angles – 3” x 3” x 1/4”
- Undercarriage – Manual raise with pin lock height adjustment
- Axle Assembly – Non-powered radial axle with dual 11:00 x 22.5 tires
- Gear Reducer – Dodge size #515 TXT
- Backstop – Included
- Motor – 20 HP, 230/460 V, 3 Ph., 1800 RPM, NEMA Premium Efficiency
- Head Pulley – 18” x 38” with 3/8” herringbone lagging
- Tail Pulley – 16” x 38” self-cleaning wing-type
- Head Bearings – 3 7/16” Dodge SCM
- Tail Bearings – 2 15/16” Dodge SCM
- Head Shaft – 3 7/16” turned, ground and polished
- Tail Shaft – 2 15/16” turned, ground and polished
- Take-Ups – 24” screw-type
- Loading Area Idlers – (5) impact idlers on 1’ centers
- Troughing Idlers – CEMA B 5” on 4’ centers
- Return Idlers – CEMA B 5” rubber disc returns on 10’ centers with guards
- Belting – 3-ply, 330#, 3/16” x 1/16”, Grade 2, vulcanized by others
- Belt Cleaner – Martin “Pit Viper” primary
- Receiving Hopper – 1/4” plate, 5’ long w/adjustable rubber flashing
- Guarding – Tail pulley, V-belt drive, all pinch points
- Towing Hitch – 5th wheel hitch and a pintle loop
- Paint and Primer – 1 coat primer, 1 coat finish enamel – P&L beige unless specified otherwise
