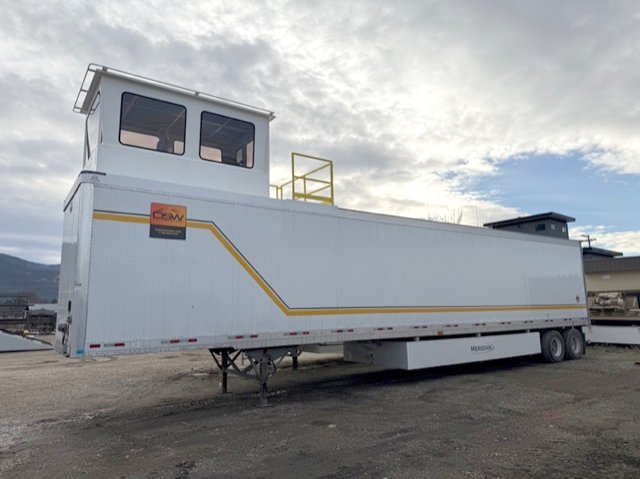

2024 Great Dane
Van:
Aluminum roof and sides, hardwood floor, 101” inside width 108” inside height, 13’6’’ high, HD stainless steel work bench with drawers
- Insulated 2” x 4” wall between generator and common area with walk-through door
- Dual locking swinging rear doors, galvanized frame
- Side wall galvanized walk-in locking exterior door
- Aluminum entrance steps and steel railing on one side
- Four (4) adjustable louvers for generator air intake
- Floor grate (qty. 1) in genset area

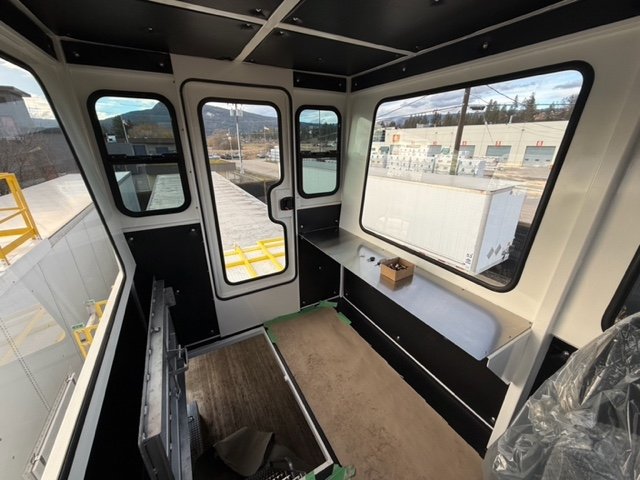

- Deluxe operator’s module (cab)
- New 6’ X 10’ X operators cab, painted white
- 25,000 BTU wall mounted air conditioner / heater
- Full vision tinted safety glass
- Fully foam insulated with sound suppression package
- 110 Volt panel, wall receptacles, fluorescent lights
- External roof top receptacles for 4 – 220-volt flood lights
- Small sliding windows on both sides of cab

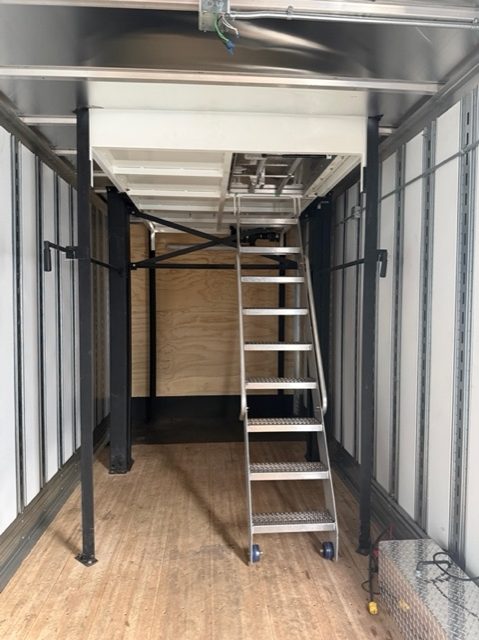

- Floor door, rolling ladder with railing attached to cab
- Rear locking door (door will open when cab is down)

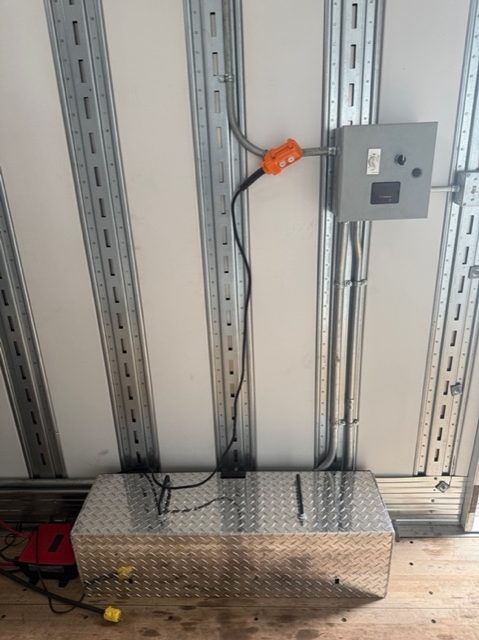

- 12-volt hydraulic lifting package

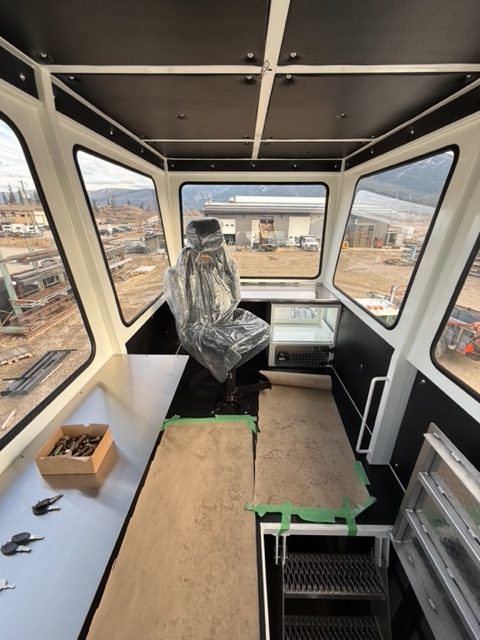

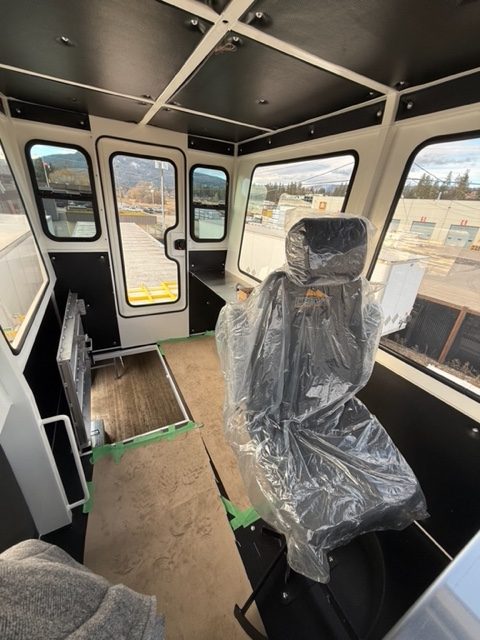

- Operator’s fully adjustable pedestal-style chair with arms

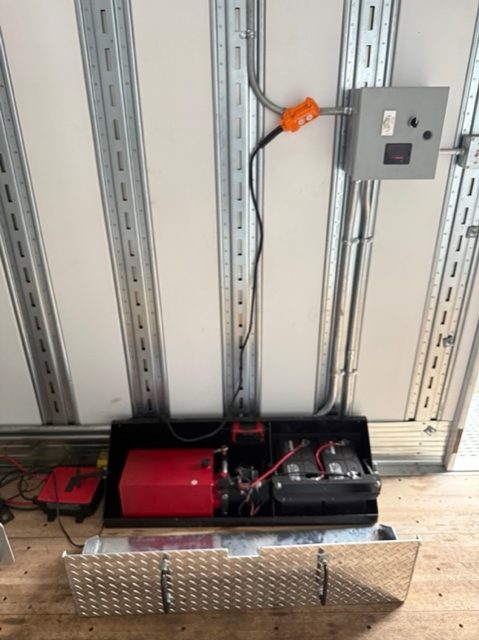

- 12-volt charger package with new 12-volt battery for tower lift

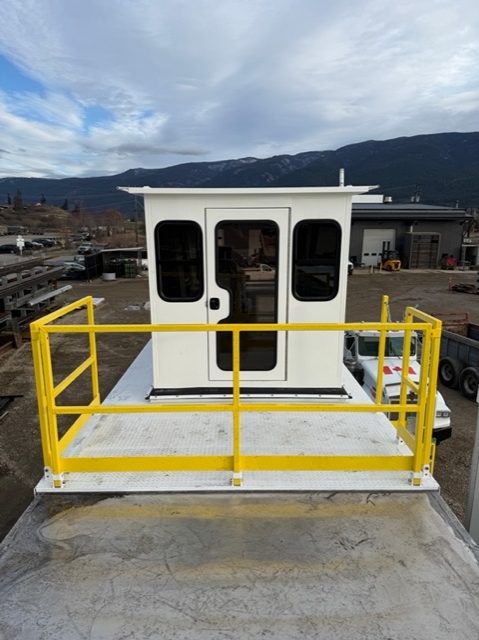

- Roof walkway with folding railing around cab, toe kick
- Interior shelving above window
- One (1) only new diesel fuel tank
- CODE ULC double-walled Envirotank 1,710-gallon diesel tank hung under trailer
- Outside filler spout and locking cap
New MCC
1. Allen Bradley EEMAC 12 gasketed MCC c/w:
- 1 – 1200-amp main breaker.
Jaw:
- 1 – 150HP F.V.N.R. starter.
- 1 – 50HP F.V.N.R. starter.
- 2 – 20HP F.V.N.R. starter.
- 1 – 10HP F.V.N.R. starters
Feeder:
- 1 – 15HP F.V.N.R. starter.
- 1 – 10HP F.V.N.R. starter.
Twin screen:
- 2 – 50HP F.V.N.R. starters.
- 2 – 20HP F.V.N.R. starter.
- 3 – 7.5HP F.V.N.R. starters.
400 HP cone:
- 1 – 400HP soft start.
- 2 – 20HP F.V.N.R. starters.
- 2 – 10HP F.V.N.R. starters.
- 1 – 5HP F.V.N.R. starter.
Stackers:
- 2 – 40HP F.V.N.R. starters.
- 1 – 100HP F.V.N.R. starter.
Conveyors:
- 2 – 20HP F.V.N.R. starters.
- 2 – 10HP FV.N.R. starters
Spares:
- 1 – 20HP F.V.N.R. starters.
- 1 – 50-amp feeder breaker for distribution transformer.
All starters c/w – HMCP breakers.
- 120-volt separate control.
- Auxiliary contacts on breakers.
- Auxiliary contacts on starters.
Add-on as per Customer request
2 – 30HP V.F.D
2. Tower wiring and controls c/w:
- 1 – Pre-wired stainless steel control console to accommodate 50 stations.
- 1 – Key operated lock-out switch.
- 1 – Emergency stop button.
- 28 – Push-pull stations and pilot lights.
- 1 – Jaw alarm system.
- 1 – Cone alarm system.
- 1 – Cone ammeter.
- 1 – Volt meter.
- 1 – Cycle meter.
- 1 – Hour meter.
- 1 – Percent meter.
- 1 – Grizzly dump control.
- 1 – Feeder control.
- 1 – Push button for start-up alarm.
- 1 – Subpanel with lights/plugs
3. Trailer wiring c/w:
- 1 – 30KVA 480-120/208V distribution transformer.
- 1 – 36 circuit distribution panel.
- 4 – 8’ LED strip fixtures c/w wire guards.
- 3 – Weatherproof junction boxes
- 4 – 129W LED fixtures.
- 1 – LED Light over side entrance door.
- 1 – Front-mounted siren.
- 2 – Double remote 12vdc LED lights with timer
- 1 – Wall inserted angle plug box containing all motor receptacles, twist locks, duplex
- receptacles, and all necessary control plugs to operate the plant.
- Convenient outlets throughout the van.
