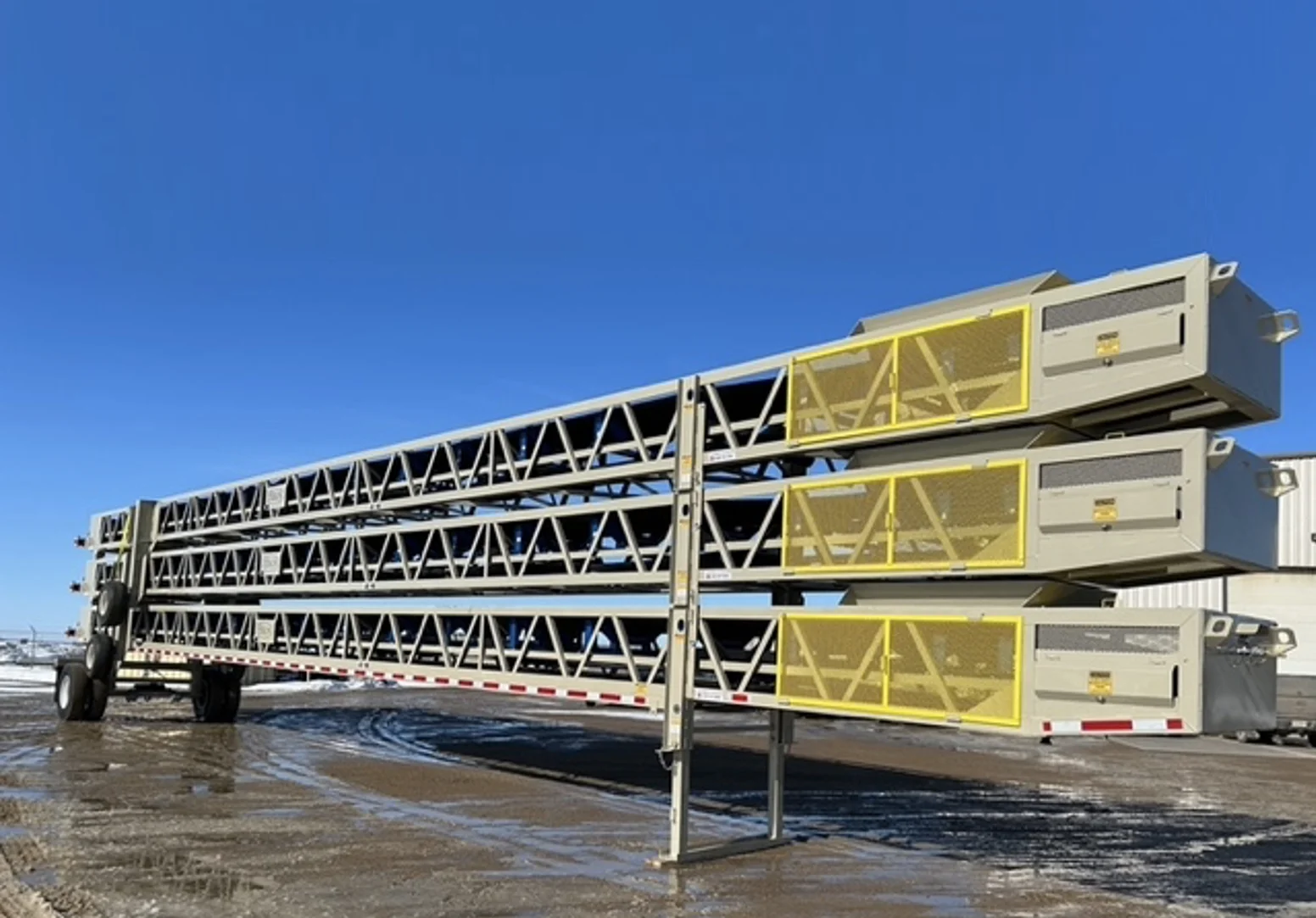

2024 Hikon 36×70 Stacker
HIKON ROLL OFF 3670 PORTABLE STACKABLE CONVEYORS
Three Conveyor Bodies
- 30 inch deep body truss
- Angle iron construction
- Four foot long receiving hopper
- Cord hangers
- 20 HP drive complete with Dodge #4 reducer, TEFC motor, belt drive and drive guard
- 5″ rubber disc Luff 3400 Series return rolls with maximum spacing of 10′
- Four 5″ 20 degree Luff 3400 Series steel trough sets under the hopper
- 5″ 35 degree Luff 3400 Series trough sets with maximum spacing of 48″
- 1/4 X 1/16 3 Ply Duraline 30 PIW belting with vulcanized belt splice
- Martin Belt Scraper on head pullies
- Painted with Hikon Grey Durathane paint
100 ft power cord package with plug end
One Transport Unit
- Running lights
- Manual adjustable height undercarriage
- Fold down support legs
- Additional bracing under the conveyor
- Kingpin
- Air Brakes
- Mud flaps
- Lift lugs
- Dual 12.00×22.5 radial tires
- Glad hand overs
Two Pit Units
- Solid height undercarriage
- Single 12.5L16, 12 ply tires
- Lift Lugs
- Trolley roller assembly for setup
