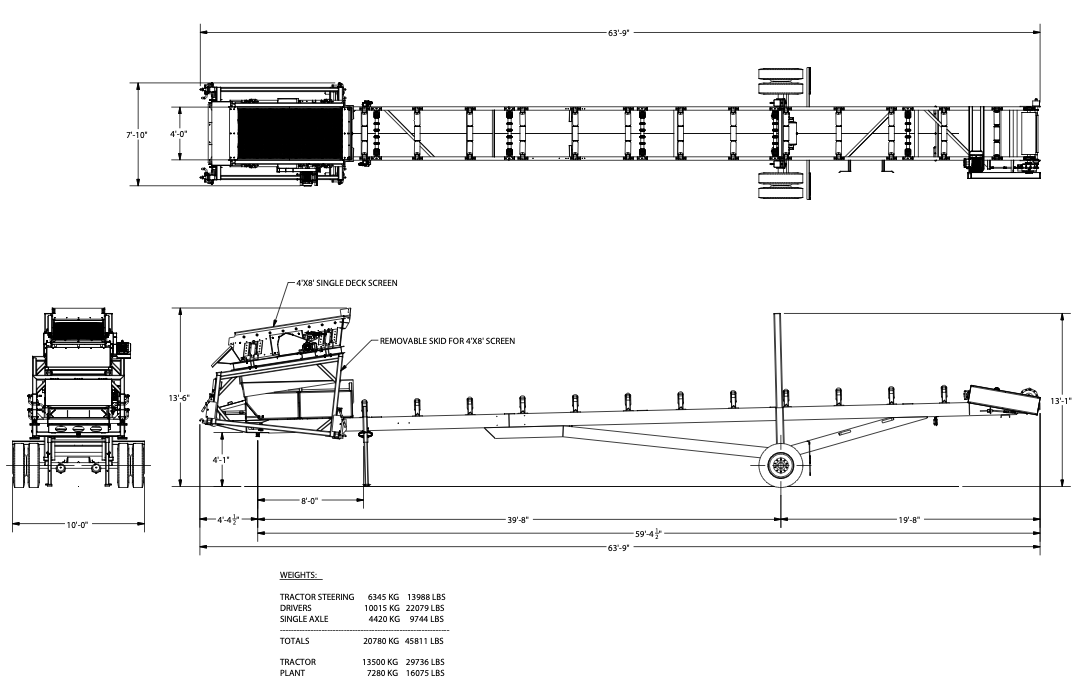

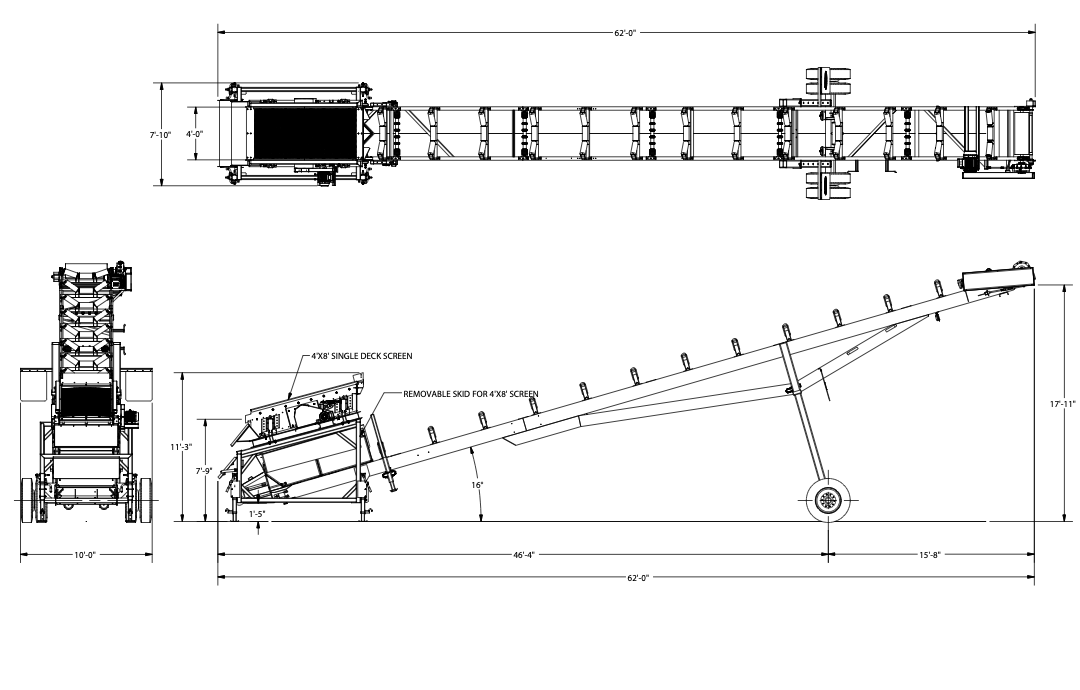

NEW 4×8 Single Deck Screen Module With 36″ x 60 Ft Highway Portable Conveyor
TRANSFER CONVEYOR – 36″ X 60″ C/W
- 12 inch deep body channel
- 330 FPM belt speed
- Eight foot long receiving hopper c/w guard panels, clamp bars and rubber skirting
- 15 HP drive complete with Dodge TA4 reducer, 1800 RPM
- 3/60/230/460 TEFC motor, belt drive and drive guard
- 12″ rubber lagged head pulley c/w 2-7/16″ shaft
- 12″ crown faced winged tail pulley c/w 2-7/16 shaft
- 5″ rubber disced Luff 3400 Series return rolls with maximum spacing of 10′
- 20 degree steel Luff 3400 Series trough sets under the hopper
- 35 degree steel Luff 3400 Series trough sets with maximum spacing of 48″
- 1/4 X 1/16 3 ply Duraline 375 PIW belting
- Vulcanized belt splice
- Dual 11.00 x 22.5 radial tires
- Running lights
- Solid “V” style undercarriage with manual lift
- Extended axle support tubes
- Kingpin
- Air brakes
- Power cord package c/w 148/45 meters long cord and 30 amp male cord end – Lift lugs
- Blasted and painted with grey Durathane paint
- V-plow scraper
- Martins belt scraper on head pulley
- Scale mount holes
- Screen skid mounting package
SINGLE DECK VIBRATING SCREEN – 48″ X 8′ C/W
- Reinforced wall plates for increased strength near drive shaft assembly
- Heavy duty crowned deck frames with rubber crown bar protectors
- 15 degree incline with circular throw and 3/8″ vibration stroke
- Vibration resistant grade 8 stover bolts
- Shielded vibrating shaft assembly with grouser bar
- Heavy duty flywheels mounted on shaft assembly c/w C4 clearance double- row spherical roller bearings with guards on both sides
- Heavy duty shaft seals rated for dusty & high temperature
- Removable bearing housing for easy maintenance
- Adjustable/removable flywheel weights for different strokes
- Screen clamp bars with hardware
- Raised feed chute with QT400 liners
- Discharge chute with QT liners with a secondary inclined chute with rubber liner
- 5 hp drive with 1800 rpm 3/60/230/460 TEFC motor, drive belts with sheaves and drive guard
- Heavy duty tension spring for more stability during operation
- Heavy duty snubbers on 4 corners with wearing pads for increased stability
- Heavy duty sub-frame with mounts at 4 corners
- Heavy duty marsh mellow springs on 4 corners
- Power cord package c/w 100/31 meters long cord and 30 amp male cord end
- Blasted and painted with grey Durathane paint
SKID FOR MOUNTING ABOVE VIBRATING SCREEN C/W
- HSS body with mounting pads for the 48″ x 8′ screen deck
- Easy installation with the 36 x 60 conveyor body specified above to use the vibrating screen with the conveyor
- Easy removal of the skid to allow conveyor to run as a stand-alone unit
- Jacking legs on 4 corners of the skid with jack handles for manual levelling
- Foldable discharge chute on the discharge end to keep the rocks away from the conveyor
- Blasted and painted with grey Durathane paint
