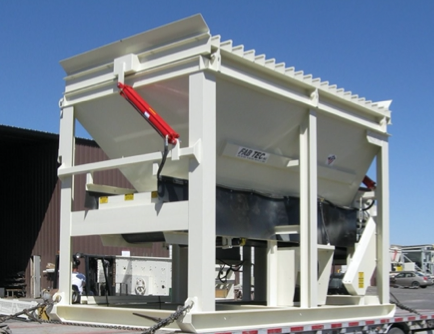

Skid Mounted 36″ Belt Feeder
2 sizes to choose from: 12 OR 15 C.Y. Hopper:
- >3/8” Plate
- >Adjustable Wt. feed gate
- 14 ft wide separating grizzly
36″x17 ft Belt Feeder:
- 20 HP Teco Motor
- Falk 5207 shaft mount reducer
- Dodge SCM bearings,
- 3 ply belt with 1/4″ cover.
- 16” vulcanized lagged head pulley self cleaning wing tail pulley.
- 12″ Centers on Cema C sealed carrier rollers
Hydraulic Dump Grizzly:
- Grizzly bars 3/4″x6″ FB and 1 1⁄2″ round.
- 10 HP TEFC, Vickers V20 pump with spool valve.
- 4″ Bore x 36″ stroke cylinders.
- Hydraulic tank with filter protection.
Options:
- Solid state variable speed controller
- Feeder without grizzly
- Removable side rubber curtains
